Windows Time Client

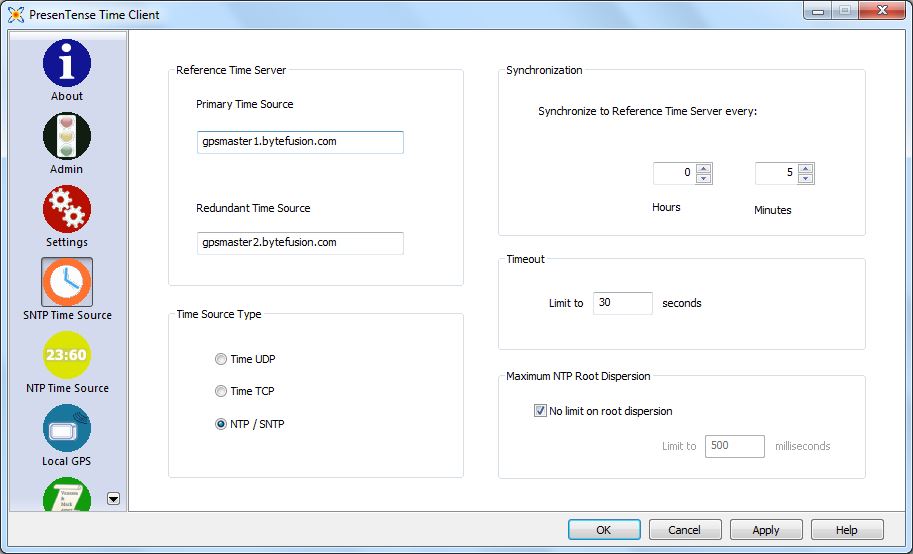

SNTP Time Source Tab
Reference Time Server
This option allows you to specify one primary and one redundant time server to which PresenTense Time Client will synchronize with. You may specify either an IP address, hostname, or DNS name. If you elect to specify a hostname or DNS name, please ensure that name resolution is properly configured on your TCP/IP network.
Automatic fail-over from the primary to the redundant time source occurs if the name for the primary source cannot be resolved, or
PresenTense Time Client times out waiting for a reply from the primary time source.
If you decide to synchronize to a time server on the internet rather than a corporate time server, ensure also that firewall rules permit
the network traffic for the protocol you select.
Time Source Type
This option allows you to specify the type of time source you wish to use. Your choice here depends mainly on the availability of services offered and your time keeping requirements. The recommended and by far most accurate option is NTP/SNTP.
Synchronize Every
This option allows you to set the polling interval. How often PresenTense Time Client needs to poll its time source depends primarily on the clock drift of the local BIOS clock and your time keeping requirements. The default value is 15 minutes.
Timeout
This option determines how long PresenTense Time Client waits for a reply from its time source. This value should not exceed the polling interval.
Maximum NTP Root Dispersion
This option can be used to validate time stamps received from NTP time sources. Use it to reject time stamps which exceed a certain nominal error.
