Windows Time Server

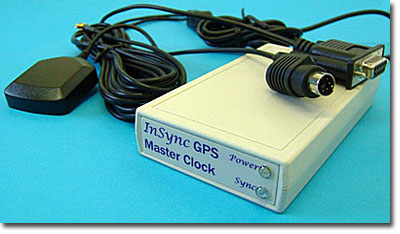

Bytefusion InSync GPS Master ClockThis driver supports the Bytefusion InSync GPS Master Clock.
|
|
|
|
| • | Accurate and reliable ( microsecond accuracy, 24/7 availability ) |
| • | Easy to install ( most users up and running in less than two minutes ) |
| • | Versatile (uses power from the computer keyboard so it works anywhere in the world) |
GPS Master Clock GPS Receiver Details :
Output |
NMEA0183 V2.2 protocol, and supports command: GGA, GSA, GSV, RMC. |
Hot Start |
Less than 8 sec. |
Warm Start |
Less than 40 sec. |
Cold Start |
Less than 50 sec. |
Re-acquisition |
100ms |
Time Accuracy |
340 nsec 95%, C/A code |
Channels |
12 |
Sensitivity |
-170 dBW |
Driver tunables :
Tunable |
Values/Units |
Description |
time1 |
seconds |
offset calibration factor |
stratum |
0-15 |
server stratum, default 0 |
refid |
one to four letters |
server identifier |
