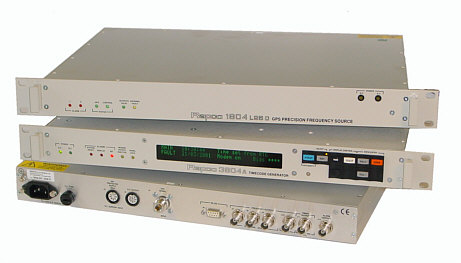

Rapco GPS ReceiversRapco Electronics Ltd. manufacture a range of global positioning system satellite clock receivers. This driver supports the models from the Rapco 1804, 1814 and 2804 ranges that are fitted with the NMEA output option.
For detailed information on Rapco Electronics Ltd. product range, please contact :
Rapco Electronics Ltd
Joule Road
Basingstoke
Hants RG21 6XF
England
Tel: +44 (0)1256 325454
Fax: +44 (0)1256 322695
Driver tunables :
Tunable |
Values/Units |
Description |
time1 |
seconds |
offset calibration factor |
stratum |
0-15 |
server stratum, default 0 |
refid |
one to four letters |
server identifier, default GPS |
